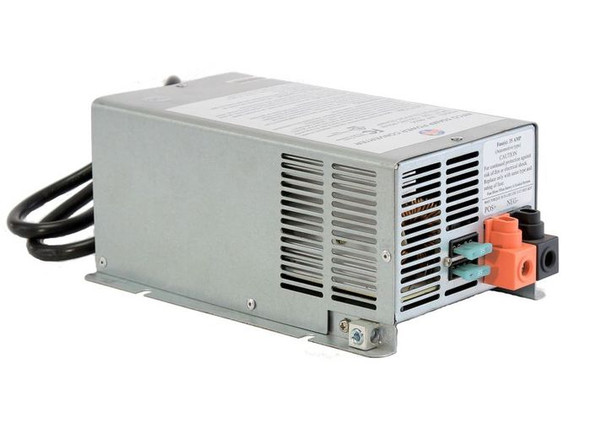

WFCO 9800 Series (WF-9800-AD) Deck Mount Converter / Charger

The WFCO 9800 Series (WF-9800-AD) converters deliver clean, dependable 12V DC power for your RV’s lights, controls, and accessories—while also providing multi-stage battery charging when you’re on shore power or generator power. These deck-mount converters are designed to pair well with RV distribution panels/centers and are a popular replacement/upgrade when you need reliable charging performance.

A standout feature of the WF-9800-AD series is Auto-Detect charging: the converter recognizes Lithium-Ion vs Lead-Acid battery chemistry and automatically adjusts the charging profile—no switches or buttons required.

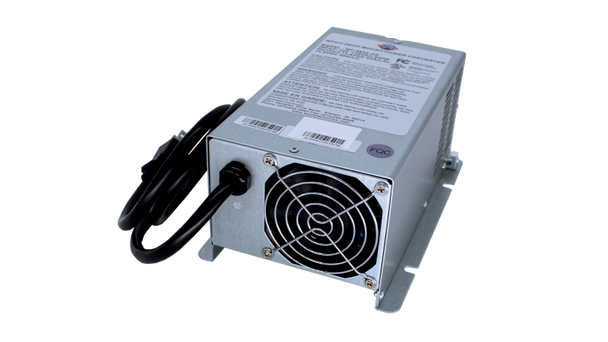

All models include built-in protections and a cooling fan that runs only when needed for quieter operation.

Tech Specs (Applies to All WF-9800-AD Models)

• Series: WFCO WF-9800-AD (Deck Mount Converter/Charger)
• AC Input: 105–130 VAC, 60 Hz

Charging / Converter Type:

• Lead-Acid: 3-stage converter/charger
• Lithium-Ion: 2-stage converter/charger (Auto-Detect)

DC Voltage Range:

• Lead-Acid: 13.2–14.4 VDC

• Lithium-Ion: 13.6–14.6 VDC

• Charge Modes: Normal 13.6V; Trickle (LA only) 13.2V; Bulk 14.4V (LA) / 14.6V (LI)

• Protections: Over current, over temperature, over voltage, reverse polarity

• Certifications: UL/cUL listed; FCC Class B compliant

• Case: Metal (Gray)

Model Comparison

All values above are from WFCO’s WF-9800-AD product sheet/specifications.

Quick Picking Tip (Optional, helps buyers)

• 35–45A: Smaller battery banks / lighter 12V loads
• 55A: Common OEM replacement size
• 65–75A: Faster charging for larger banks and heavier DC loads
