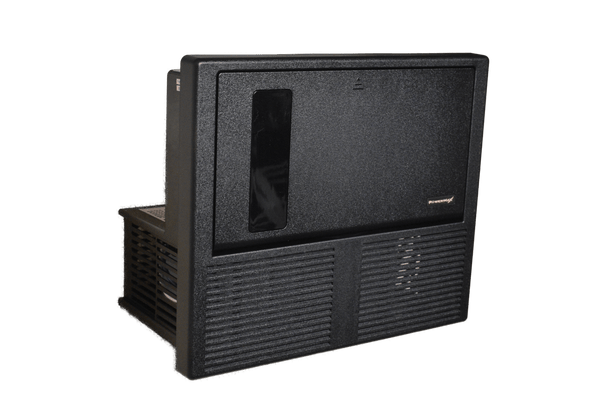

PowerMax PPC Series Power Center (AC/DC Distribution Panel + Smart Converter/Charger)

The PowerMax PPC Series combines your RV’s AC breaker panel, DC fuse distribution, and a built-in smart converter/charger into one clean power center. It converts shore/generator power into stable 12V DC to run your lights, water pump, fans, control boards, and other DC loads—while also charging and maintaining your battery bank.

PPC power centers include multi-stage smart charging and a fixed/adjustable power supply mode (13.0V–16.5V), allowing you to tune the output for different battery types and applications. They’re designed as an upgrade/replacement for many common RV power centers and include features like pre-wired DC circuits, fuse indicators, and built-in protections to keep things safe and reliable on the road.

Tech Specs (Applies to PPC Power Centers)

• Function: AC/DC distribution panel + converter/charger (power center)
• Charging/Power Modes: Multi-stage smart charging + fixed/adjustable power supply mode
• Adjustable Output Range (fixed mode): 13.0V to 16.5V

• Protections: Reverse polarity, overload/short-circuit protection, thermal protection

PPC (30A Power Center)

These PPC models use a 30A AC input and include a DC fuse panel with 11 pre-wired DC outputs plus 1 main and 6 branch AC slots.

• Warranty: 2-year
• Cutout (noted for PPC 30-35/45/55A full-size power center replacement): 12 1/8" W × 11" H

Model Comparison (PPC — 30A Line)

Specs above from the PPC spec sheet.

Quick Picking Tip

• 55A: common replacement size for many RVs

• 60A: good “sweet spot” for moderate battery banks

• 75A: faster recharge for larger banks

• 100A: best for big banks / quick turnaround charging
